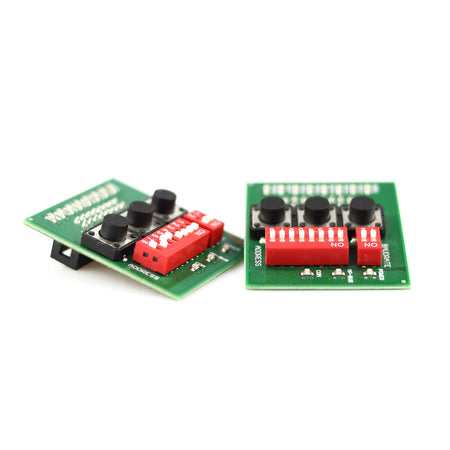

DipSwitch Board for Custom Configuration Settings

The DipSwitch Board is a versatile electronic component used for custom configuration settings in various electronic devices and systems. Consisting of multiple miniature switches arranged in a compact housing, the DipSwitch Board allows users to set specific parameters, options, or modes by toggling the switches on or off. With its simple yet effective design, this board offers a convenient and cost-effective solution for customization and user-defined settings in electronic projects, appliances, control panels, and industrial equipment.

Key Characteristics and Features:

Multiple Switches: The DipSwitch Board typically features multiple individual switches, commonly referred to as DIP switches, arranged in a row or grid pattern on the board. Each switch corresponds to a specific configuration option, setting, or feature that can be enabled or disabled by changing the switch position.

Binary Configuration: Each switch on the DipSwitch Board represents a binary digit (0 or 1), allowing users to create binary-coded configurations by toggling the switches accordingly. The binary-coded settings can be interpreted by the electronic device or system to define various parameters, such as operating modes, input/output options, communication protocols, or user preferences.

User-Friendly Interface: The DipSwitch Board provides a user-friendly interface for configuring settings without the need for specialized software or programming knowledge. Users can simply toggle the switches to the desired positions to set the configuration options according to their requirements, making it accessible to a wide range of users, including technicians, installers, and end-users.

Customization Flexibility: The DipSwitch Board offers flexibility for customization, allowing users to define and adjust settings based on specific application needs or preferences. By changing the switch positions, users can customize various parameters or features to tailor the functionality of the electronic device or system to suit different environments, requirements, or use cases.

Overall, the DipSwitch Board provides a simple yet effective method for custom configuration settings in electronic projects and systems. With its multiple switches, binary-coded configuration options, user-friendly interface, customization flexibility, compact design, versatility, and cost-effectiveness, this board offers a practical solution for tailoring the functionality of electronic devices and systems to meet specific requirements and preferences.
